CNC Turning

Our machine park within CNC turning and multitasking with Mazak INTEGREX E-650 H II as the largest machine. The Mazak machine, with a turning diameter of 920 mm, turning length of 4,000 mm and drilling capacity of 1,000 mm in depth, can solve complicated turning and multitasking tasks as one of the largest machines in the industry. The machine is fully 5 axis and equipped with programmable glasses and pinholes.
In addition, we have a number of CNC controlled turning machines covering turning diameter up to 720 mm and turning length up to 1,430 mm.
We are the right partner for smaller series and single-piece production where short delivery time, quality and flexibility are important parameters.

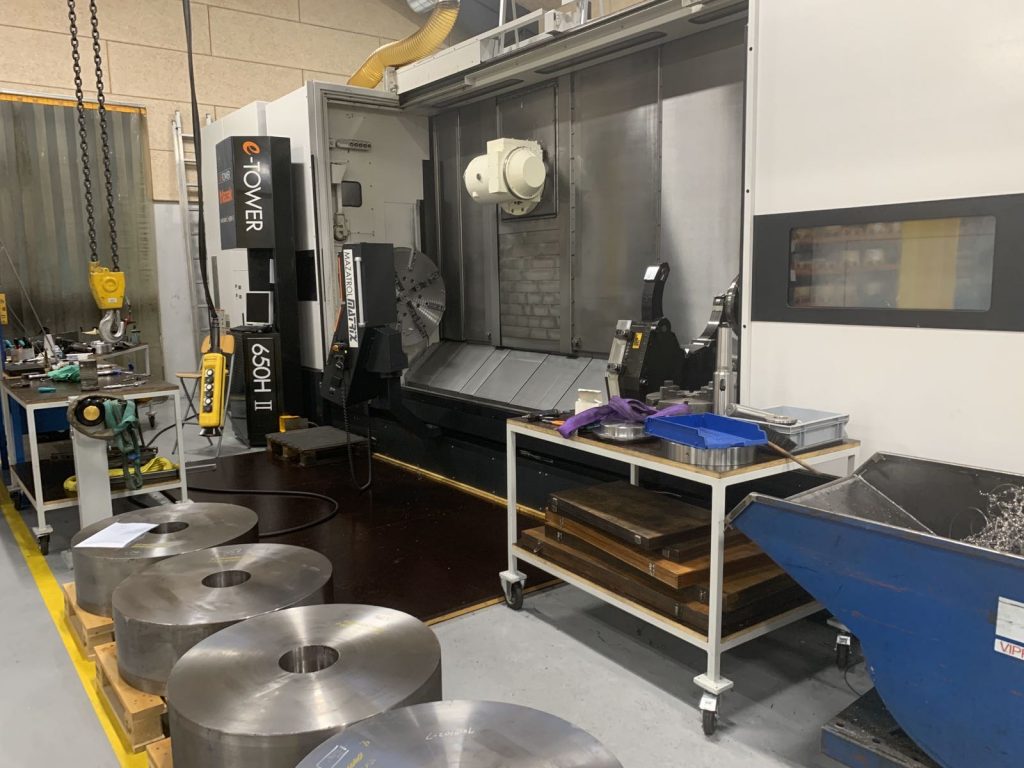

MAZAK INTEGREX E-650 H II

Axes X-Y-Z-B-C-W

Turning:
Max. orbit diameter: 920 mm
Max. turning diameter: 920 mm
Max. turning length: 4000 mm
Max. RPM: 1000 rpm
Max. power: 6300 NM / 45 KW

Long bore bar:
ø120 × 1000
ø100x approx. 800
ø80x approx. 900
Programmable pin dock and glasses (ø215-ø510)

Milling:
Full. 5-axis steering
XYZ: 1025x650x4000 mm
C: 360 gr.
B: 240 gr (+ 210 gr -30 gr)
Max. RPM: 5000 rpm
Max. power: 550 NM / 37 KW
Tools: 80 pcs. Capto C8
Renishaw RMP60

Excel Csepel SLT 630/1500

Rotary tools 12 KW.
Programmable pin dock and glasses (ø30-ø245)
Max. orbit diameter: 720 mm
Max. turning diameter: 630 mm
Max. turning length: 1430 mm
Max. RPM: 2200 rpm.

Excel Csepel SLT 320/600

Rotary tools 9 KW.
Max. orbit diameter: 450 mm
Max. turning diameter: 320 mm
Max. turning length: 475 mm
Max. RPM: 4000 rpm.

Victor V Turn 36/85

Max. orbit diameter: 680 mm
Max. turning diameter: 550 mm
Max. turning length: 800 mm
Max. RPM: 2500 rpm.

Storebro 200

Max. orbit diameter: 350 mm
Max. turning diameter: 240 mm
Max. turning length: 700 mm
Max. RPM: 6000 rpm.

Excel Csepel SLT 630/1000

Rotary tools 12 KW.
Max. orbit diameter: 720 mm
Max. turning diameter: 630 mm
Max. turning length: 930 mm
Max. RPM: 2200 rpm.

Victor V Turn 36/85

Max. orbit diameter: 680 mm
Max. turning diameter: 550 mm
Max. turning length: 800 mm
Max. RPM: 2500 rpm.

Storebro 2000

Max. orbit diameter: 350 mm
Max. turning diameter: 240 mm
Max. turning length: 700 mm
Max. RPM: 6000 rpm.

Pinacho

m. Fanuc Quickturn
Pinol height: 310 mm
Turning length: 1500 mm
Drilling through : 105 mm
