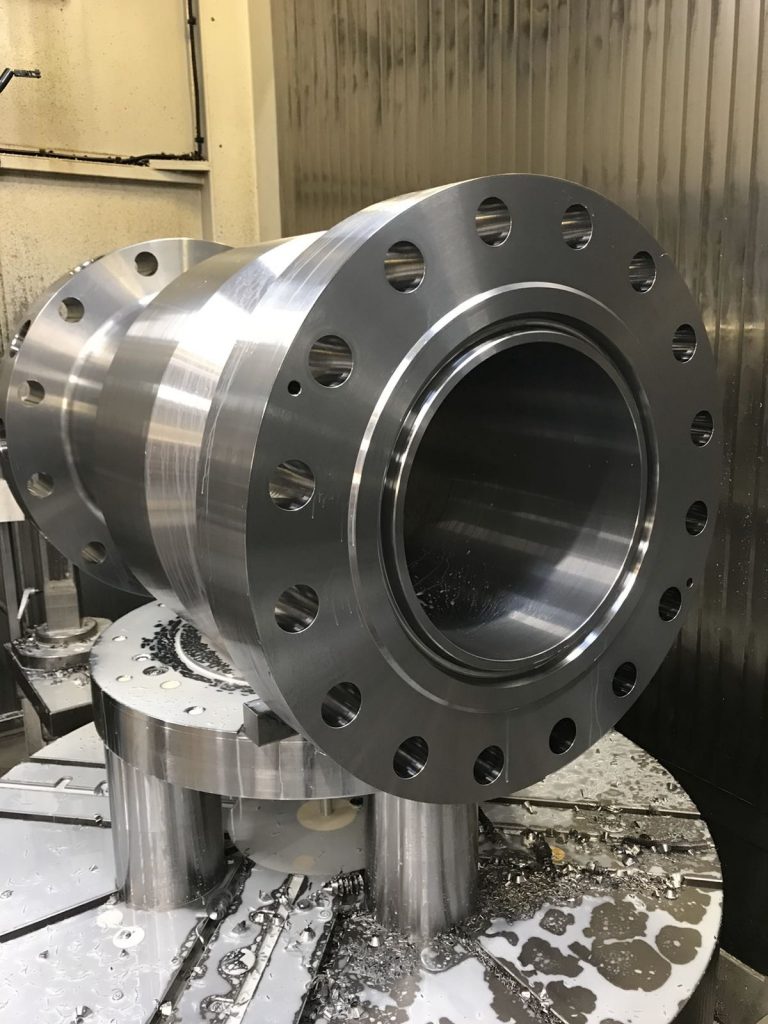

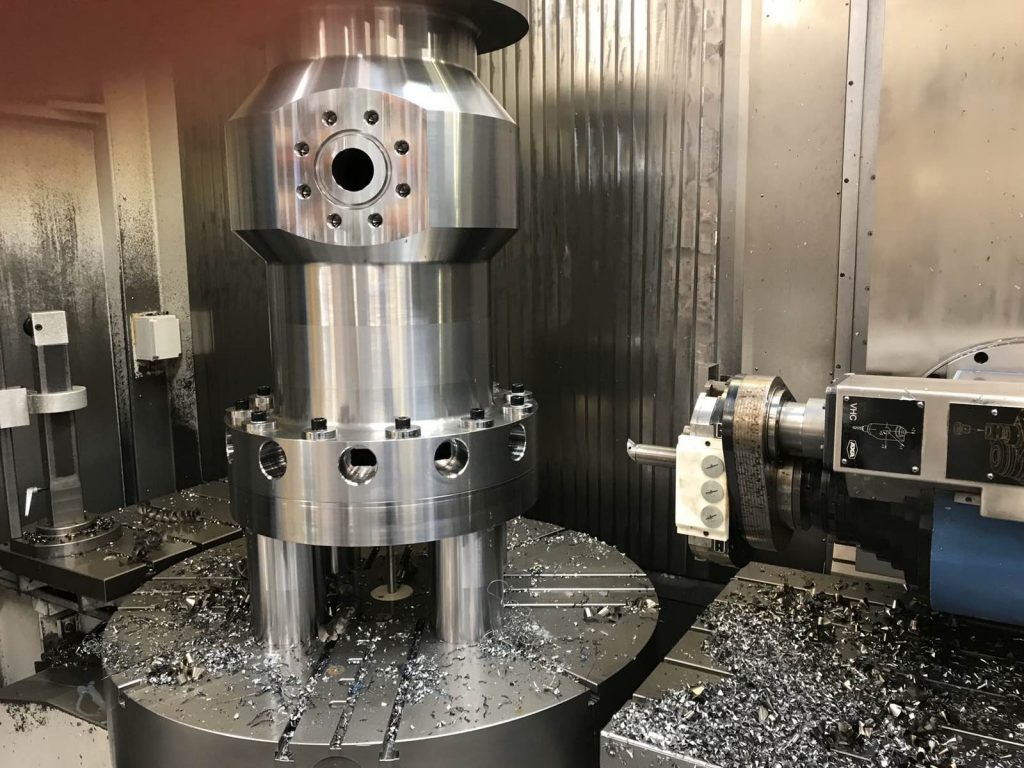

On the milling side, with the AXA VHC 50-3000 M as the most advanced machine, we can both rotate and mill in an installation, as the machine is equipped with a 1,250 mm 35 kW turntable that can handle 4 tons workpieces and a maximum turning diameter of 1,500 mm. The machine is equipped with 60 pcs. SK50 milling tools and 18 pcs. Capto turning tools so that even very complicated subjects are completed in one workflow. The machine is also equipped with a U-axis with a controlled fin drill head, which means that rotating tasks can be performed horizontally and offset for the center vertically while the workpiece is in the machine.
In addition to the FD machine, we have a number of CNC controlled milling machines covering 3 axle milling up to 1,500 x 800 x 900 mm, as well as smaller 4 axle parts.
We are the right partner for smaller series and single-piece production where short delivery time, quality and flexibility are important parameters.
MAZAK INTEGREX E-650 H II
Axes X-Y-Z-B-C-W
Turning:
Max. orbit diameter: 920 mm
Max. turning diameter: 920 mm
Max. turning length: 4000 mm
Max. RPM: 1000 rpm
Max. power: 6300 NM / 45 KW
Long bore bar:
ø120 × 1000
ø100x approx. 800
ø80x approx. 900
Programmable pin dock and glasses (ø215-ø510)
Milling:
Full. 5-axis steering
XYZ: 1025x650x4000 mm
C: 360 gr.
B: 240 gr (+ 210 gr -30 gr)
Max. RPM: 5000 rpm
Max. power: 550 NM / 37 KW
Tools: 80 pcs. Capto C8
Renishaw RMP60
AXA VHC 50-3000 M
Axes X-Y-Z-B-C-U
XYZ: 3000x900x1000 mm
C (Round table ø1250): Fully controlled
B: + – 90 degrees
U (2 planar heads): + – 37.50 mm
Main spindle SK50: 57 KW / 540 NM
Round table (spindle): 35 KW / 4700 NM
Max. turning arm: 1500 mm
Tools: 60 pcs. SK50
Turning Tool: 18 pcs Capto
Renishaw RMP60
RAMBAUDI VERSAMILL 12
Coordinate movements: 1160x890x690 mm
